Fill Curve Node

The Fill Curve node generates a mesh using the constrained Delaunay triangulation algorithm with the curves as boundaries. The mesh is only generated flat with a local Z of 0.

Inputs

Curve: Standard geometry input with a curve component.

Properties

Mode

The type of geometry the output consists of.

Triangles:: The output is made up of triangles.
N-gons:: The output is made up of n-gons.

Outputs

Mesh: The filled in curves.

Examples

A single point spline can be used to customize the triangulation of the resulting mesh.

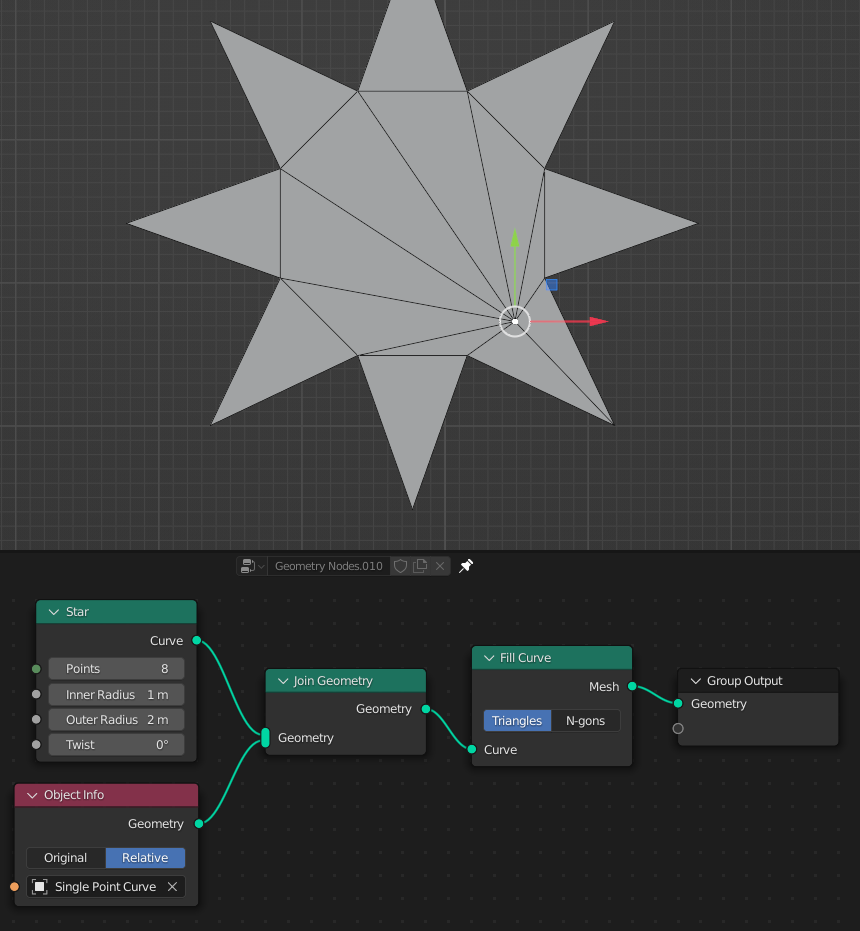

../../../../_images/modeling_geometry-nodes_curve_curve-to-points_example_1.png — Here a curve object with a single spline with a single point at the origin is joined with the star primitive to customize triangulation.

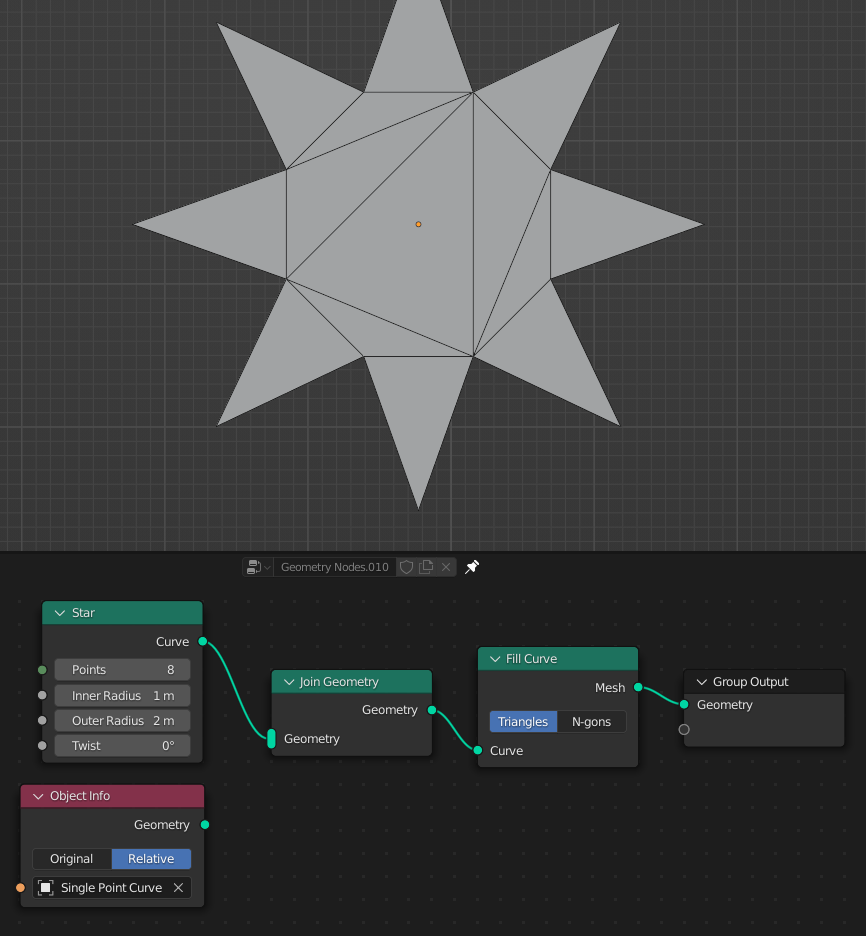

../../../../_images/modeling_geometry-nodes_curve_curve-to-points_example_2.png — This is the default triangulation without the single point.
